XCMG Concrete Pump Truck HB52

Product Categories

Shanghai Bomar Industrial Co.,Ltd

Contact Now

Name: XCMG Concrete Pump Truck HB52
Brand: XCMG
Price: 1 USD

Place of Origin : China

Brand Name : XCMG

Certification : CE, ISO9001

Model Number : HB52

MOQ : 1 set

Packaging Details : Bulk Vessel or Roll on/off Vessel

Delivery Time : 30 days

Payment Terms : T/T or Irrevocable LC at sight

Contact Now

Pumping operation
Category	Item	Unit	Parameter
Chassis	Model		FM440
	Manufacturer		VOLVO
	Max. speed	km/h	90
	Max. gradeability		38%
	Min. turning diameter	m	27.4
	Brake distance	m	≤10
	Wheelbase	mm	1995+5205+1370+1450
	Tread (front/rear)	mm	2028/1872
	Approach angle/departure angle	.	18/12
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GBⅢ
Others	Dimension (Length×Width×Height)	mm	14665×2500×3990
	Total vehicle weight	kg	47000
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping system	Theoretical output(high pressure/low pressure)	m³/h	90/138
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8.7
	Theoretical pumping times(high pressure/low pressure)	Times/min	18/27
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1450
Placing boom	Pumping slump range		12-23
	Reach height		51.5
	Reach depth		40
	Slewing radius		47.5
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger spanOverall outrigger span		11020±50
	Front outrigger transverse span		10730±50
	Rear outrigger transverse span		10430±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		650
	Max. pressure of water pump		2

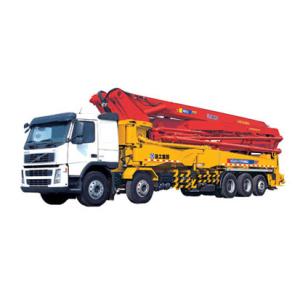

XCMG Concrete Pump Truck HB52 Images
